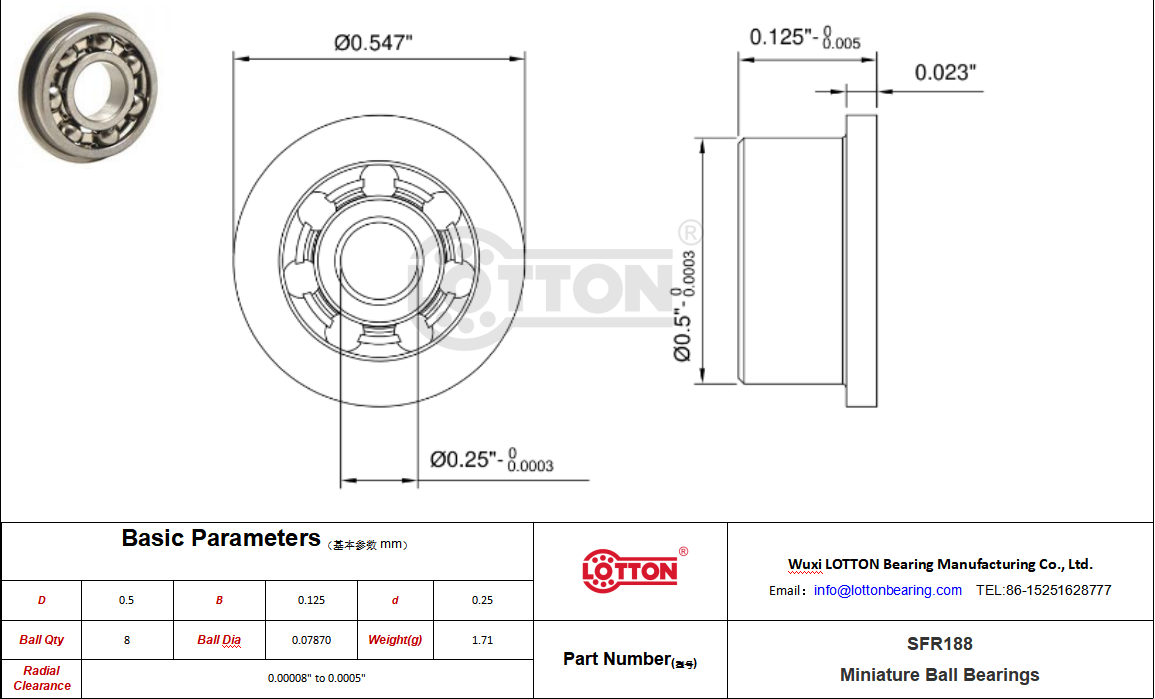

| Product Number | SFR188 Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | open |
| Bore Dia | 0.25" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.5" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.125" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.547" |
| Flange Thickness | 0.023" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | |
| Dynamic Radial Load | 310lbf |
| Static Radial Load | 72 lbf |
| Max Speed (X1000 rpm) | 36 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.07870" |
| Ball Qty | 8 |
| Weight | 1.71g |
| NMB | DDRIF-814 |
| GRW | SSF6350B |
| McMaster-Carr ABEC5 | 57155K304 |
| NHBB | SSRIF-814 |
| EZO | FR188H |
| McMaster-Carr ABEC7 | 4259T15 |
| DYNAROLL | SFR188 |
| FAG | SRF1632 |
| RMB | ULK8016X |
| MPB | S814FC |
| LOTTON | SFR188 |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR188 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | BARDEN | NMB | EZO | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | MPB |
| SFR188 | SFR188 | SFR188 | DDRIF-814 | FR188H | 4259T15 | 57155K304 | SSRIF-814 | SSF6350B | S814FC |
RMB | FAG |
ULK8016X | SRF1632 |
