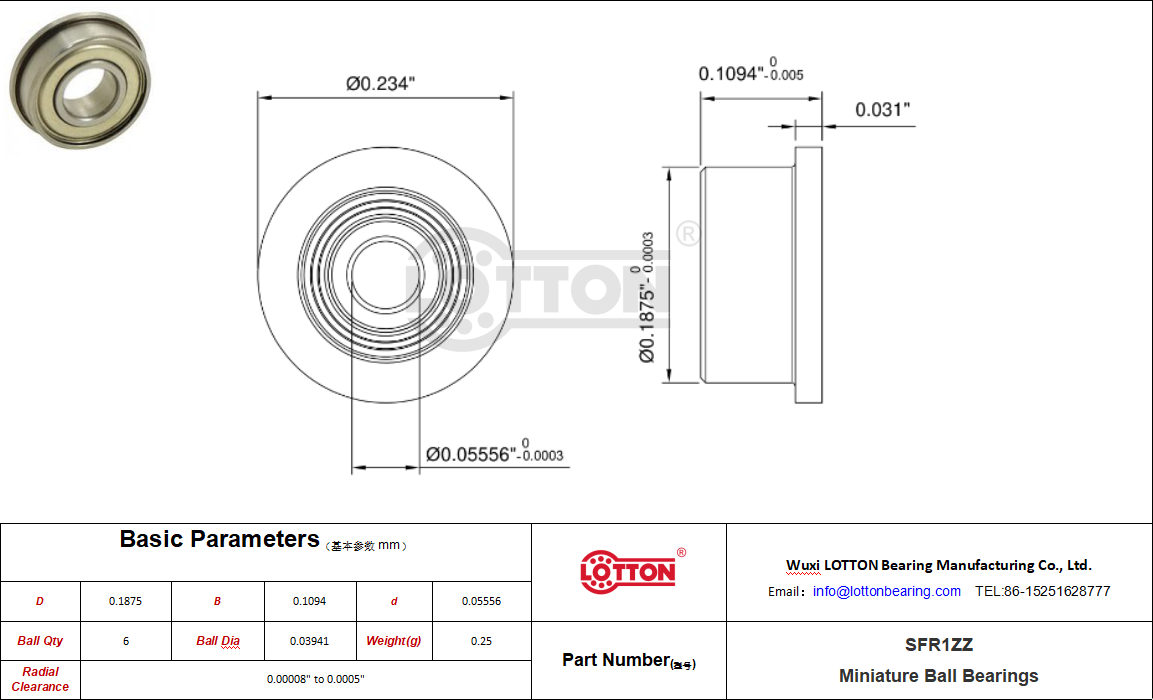

| Product Number | SFR1ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | metal dust cover |
| Bore Dia | 0.05556" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.1875" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1094" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.234" |
| Flange Thickness | 0.031" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | |
| Dynamic Radial Load | 40lbf |
| Static Radial Load | 11lbf |
| Max Speed (X1000 rpm) | 81 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.03941" |
| Ball Qty | 6 |
| Weight | 0.25g |
| NMB | DDRIF-3ZZ |
| GRW | SSF1397-2Z |
| McMaster-Carr ABEC5 | |
| NHBB | SSRIF-3ZZ |
| EZO | SFR1ZZ |
| McMaster-Carr ABEC7 | 4262T22 |
| DYNAROLL | SFR1ZZ |
| FAG | SRF4122Z |
| RMB | |
| MPB | S3FCHH |
| LOTTON | SFR1ZZ |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR1SS |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | NMB | McMaster-Carr ABEC7 | NHBB | GRW | BARDEN | MPB | FAG |
SFR1ZZ | SFR1ZZ | SFR1ZZ | DDRIF-3ZZ | 4262T22 | SSRIF-3ZZ | SSF1397-2Z | SFR1SS | S3FCHH | SRF4122Z |
