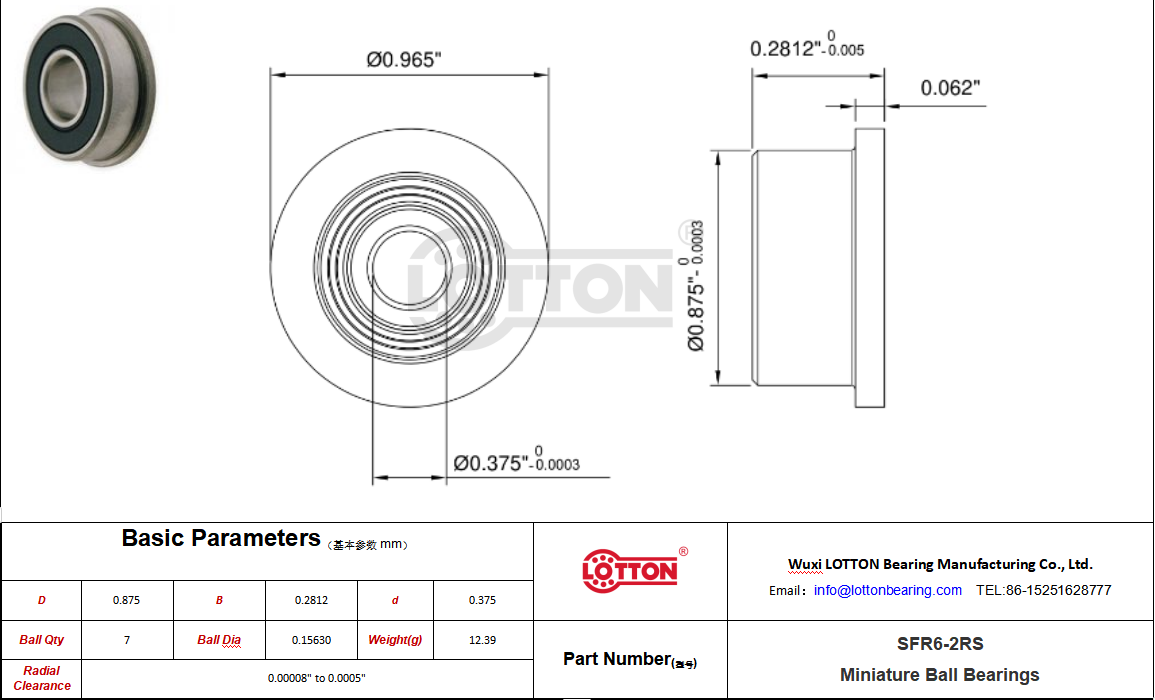

| Product Number | SFR6-2RS Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single column |
| Seal Type | rubber sealing cap |
| Bore Dia | 0.375" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.875" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.2812" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.965" |
| Flange Thickness | 0.062" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | Nitrile rubber |
| Dynamic Radial Load | 574 lbf |
| Static Radial Load | 230lbf |
| Max Speed (X1000 rpm) | 28.8 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.15630" |
| Ball Qty | 7 |
| Weight | 12.39g |
